RF Adapter SMA/mMCX-KyK SMA Female To MmCX Female bULKHEAD Adapter
SMA female to MMCX female bulkhead mounted adapter is a high-precision RF coaxial adapter , featuring an SMA female interface and an MMCX female interface , functioning as a reliable SMA-to-MMCX female bulkhead adapter that enables seamless through-wall installation, with SMA female and MMCX female dual female interfaces, 50Ω impedance, gold-plated brass contacts and shell, operating stably at -55℃~+125℃ with VSWR ≤1.2 (at 2 GHz) and insertion loss ≤0.15 dB (at 2 GHz); this adapter realizes seamless interface conversion between SMA female and MMCX female, adopts through-wall installation mode to penetrate the cabin wall, with a compact and robust through-wall structure that firmly fixes the adapter on the cabin wall, ensuring reliable.
Product display
Product Performance Details
|
Product model
|
SMA/MMCX-KK
|
Contact resistance |
Center contact: (MMCX):≤1.5mΩ (SMA): 3 mΩ
Outer contact: (MMCX):≤0.2mΩ (SMA) : 2mΩ
|
|
Characteristic impedance
|
50 ohm
|
Body material
|
Gold plated brass
|
|
Frequency range
|
DC-6GHz
|
Insulator |
PTFE |
|
Voltage standing wave ratio
|
≤1.3
|
Central conductor
|
Gold-plated beryllium copper
|
|
Medium pressure resistance
|
1000V RMS
|
Temperature range
|
-45℃~+125℃
|
|
Dielectric constant
|
≥5000MΩ
|
Durability
|
≥500 Cycles
|

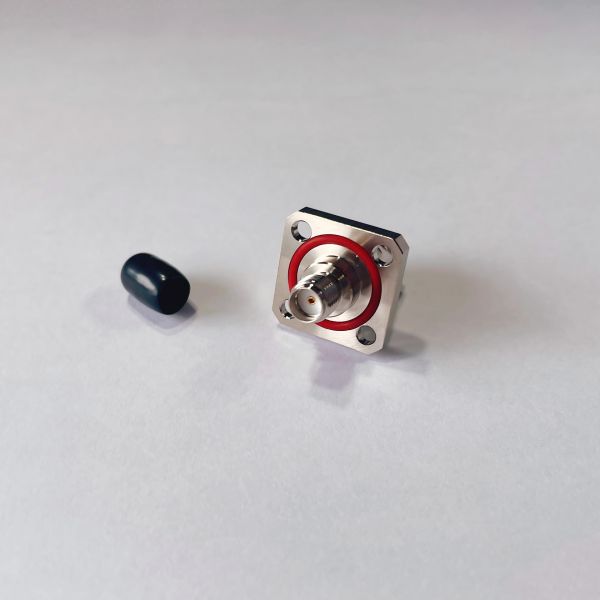

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
