IP 65 Aviation Plug Connector RS765-M12 GX12-4 Pin Connector
GX series aviation plugs are domestic circular locking connectors (National standard code GX, compatible with standards such as RS765), named "GX + outer diameter size" (For example, GX12 corresponds to an outer diameter of 12mm). According to the outer diameter size, the mainstream models are: GX8, GX12, GX16, GX20, and GX25 (corresponding to shell diameters of 8/12/16/20/25mm) are mainly used in industrial equipment, instruments and meters, and outdoor scenarios.
Product Performance Details
| Product Model | GX12-4 | Contact Piece | Gold plating of copper |
|---|
| Shell Material | Aluminum alloy | Insulation Resistance | ≥500MΩ |
|---|
| Locking Method | M12*1.0 Thread | Working Voltage | 125V |
|---|
| Number of Pins | 2/3/4/5/6/7 Pins | Temperature Rise | ≤ 50℃ |
|---|
| Mechanical Life | 500 times | Withstand Voltage | 1500V |
|---|
| Protection Grade | IP 65 | Working Current | 5 A |
|---|
| Contact Resistance | ≤5MΩ | Working Temperature | -55℃ ~ +70℃ |
|---|

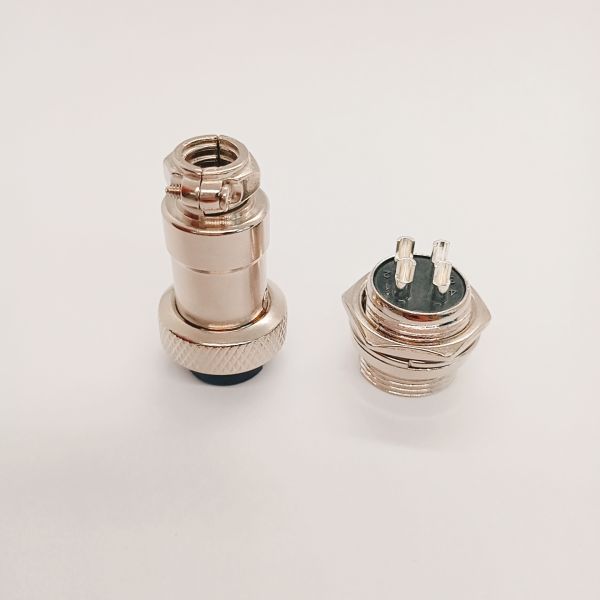

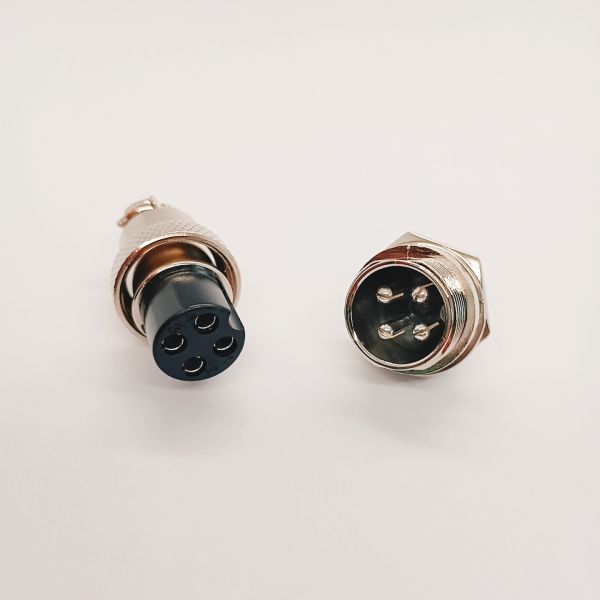

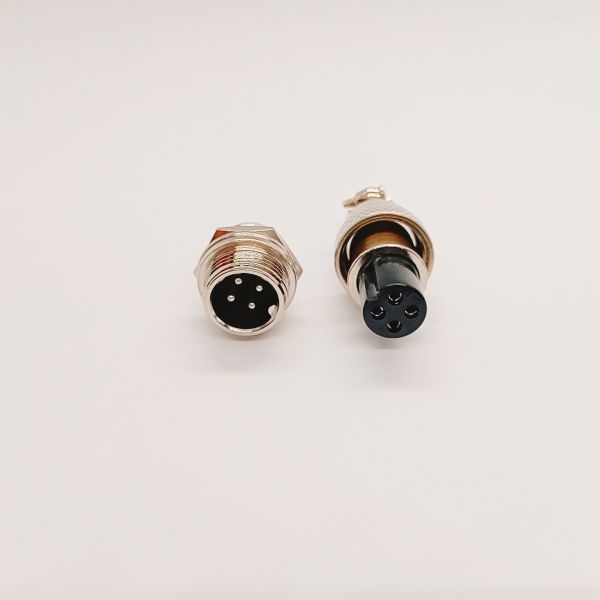

Physical Product Display
Product External Dimensions
Related Product Recommendations
Display of Strength
Office Area
Production Plant Area
Machining Production Workshop
Precision Assembly Production Workshop
Glass-to-Metal Sealed Production Workshop
Obtained Certification Certificate
Customer Visit
Product Packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others according to customers' requirements
- Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
