Micro Rectangular Connector J63A-222-009-261-TH Jack(Female) Connector
J63A series ultra-micro rectangular electrical connectors feature twisted wire elastic micro-pin inserts (commonly known as twist pins) with a spacing of 0.635mm. They have a compact size. The plugs and sockets are connected by screw and nut screwing, providing smooth insertion and extraction and reliable locking. They are suitable for interconnection in various electrical circuit systems with high density, miniaturization, lightweight, and high reliability requirements. Meet the requirements of lightweight and miniaturization of the system.
Product display
Product Performance Details
| Product model |
J63A-222-009-261-TH |
Contact resistance |
≤21 mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ 100VDC |
| Vibration |
10Hz~2000Hz 196m/s2 |
Medium pressure resistance |
250V |
| Random vibration |
Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G |
Mechanical life |
200 times |
| Impact |
980m/s2 6ms |
Rated current |
1 A |

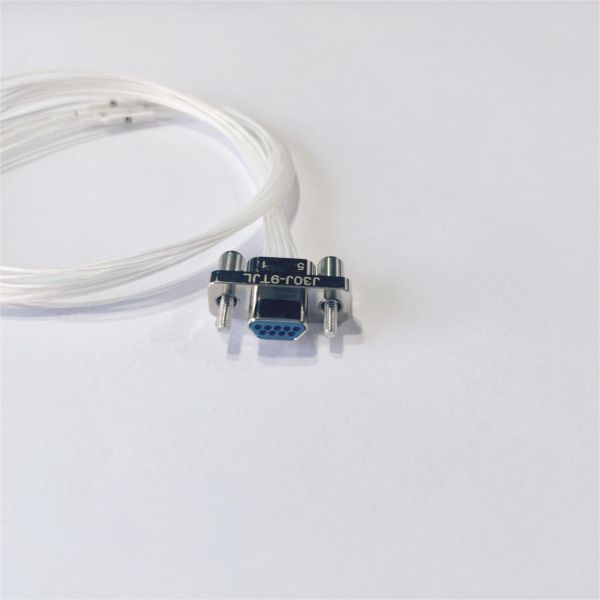

Physical product display
Product external dimensions
Related product recommendations
Product selection reference
Display of Strength
Production Plant Area
Machining production workshop

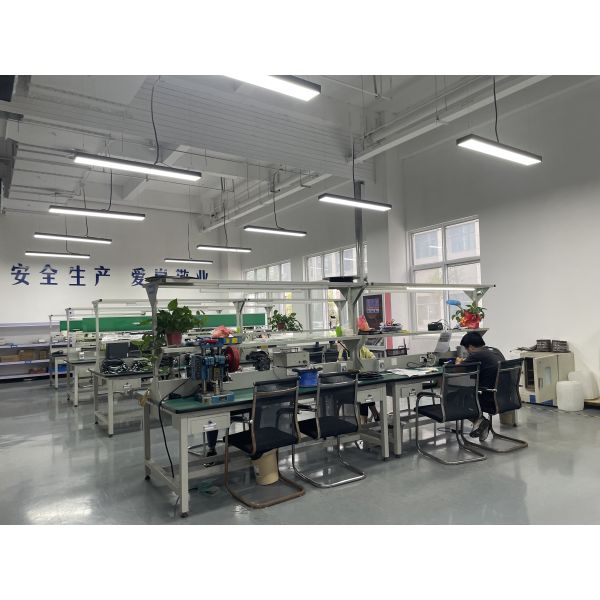

Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
